CARBONJACK 29” BIKE
LIMITED EDITION
DESIGN HIGHLIGHTS
- Custom carbon layup
- Unique sideways shock access
- FDS damping platform
- Carbon Vectran composite monocoque front triangle
- Carbon Vectran swingarm
- Golden ratio geometry
- Water bottle ready
- Titanium screws
- Internal cable routing
- Handmade in Poland
- Lifetime warranty
Manual
- Download: Carbonjack 29” Bike manual
7 199 €
LIMITED EDITION
Availability: 1st June – according to the order
CARBONJACK 29''
FULL ENDURO RACING WEAPONCARBONJACK 29''
FULL ENDURO RACING WEAPON
Design highlightS
- Custom carbon layup
- Unique sideways shock access
- FDS damping platform
- Carbon Vectran composite monocoque front triangle
- Carbon Vectran swingarm
- Golden ratio geometry
- Water bottle ready
- Titanium screws
- Internal cable routing
- Handmade in Poland
Design highlights
- Custom carbon layup
- Unique sideways shock access
- FDS damping platform
- Carbon Vectran composite monocoque front triangle
- Carbon Vectran swingarm
- Golden ratio geometry
- Water bottle ready
- Titanium screws
- Internal cable routing
- Handmade in Poland
| Frame | Carbonjack 29″, FDS Suspension, 150 mm travel, Boost |
| Fork | Fox 36 Factory Grip2 160 mm |
| Rear Shock | Fox Float X2 Factory 210×55 mm |
| Wheels | DT Swiss E1700 30 |
| Deraileur | Shimano XT RD-M8100 SGS |
| Shifter | Shimano XT SL-M8100 |
| Casette | Shimano XT CS-M8100 10-51T 12s |
| Chain | Shimano XT CN-M8100 |
| Crankset/Chainring | Shimano XT FC-M8120 32T |
| Bottom Bracket | Shimano BB-MT500 |
| Brakes | Shimano XT BL-M8100/BR-M8120 4-pistons |
| Rotors | Shimano RT-MT800 203 mm |
| Seatpost | One Up V2 M-150mm, L-180mm, XL-210mm |
| Handlebar | Antidote 800mm |
| Stem | One Up 35mm |
| Tires | Maxxis Minion DHF 29×2,5WT EXO+/DHR II 2,4WT EXO+ |
| Saddle | WTB Volt Cromoly |
| Headset | CaneCreek 40 ZS44/ZS56 |
| Grips | RaceFace Half Nelson |
GEOMETRY
“Golden Ratio Geometry” is the best overall geometry that we have ever designed. Why? Because the proportions between the front and rear triangles are most effective for the type of riding the Carbonjack is designed for. Our special balance distribution between the „Front Center” to „Chainstay” means better rider mass distribution, it doesn’t matter whether you are climbing or descending. The new Carbonjack geometry gives the rider confidence to progress.
| Size | S | M | L | XL | |
| Seat Tube Length | A | 420 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length Horizontal | B | 590,5 mm | 610,5 mm | 641 mm | 671,5 mm |
| Head Tube Length | C | 100 mm | 100 mm | 115 mm | 130 mm |
| Seat Tube Angle Horizontal | D | 75,5° | 75,5° | 75,8° | 76° |
| Seat Tube Angle Effective | E | 74,9° | 74,4° | 74,4° | 74,5° |
| Seat Tube Reach | F | 183 mm | 202 mm | 214 mm | 228 mm |
| Head Tube Angle | G | 65° | 65° | 65° | 65° |
| Chainstay Length | H | 450 mm | 450 mm | 450 mm | 450 mm |
| Front Center | I | 753 mm | 773 mm | 809 mm | 846 mm |
| Wheelbase | J | 1203 mm | 1223 mm | 1259 mm | 1293 mm |
| Reach | K | 430 mm | 450 mm | 480 mm | 510 mm |
| Stack | L | 621 mm | 621 mm | 634 mm | 648 mm |
| Spread | M | 755 mm | 766,6 mm | 795,4 mm | 824,5 mm |
| BB Drop | N | 32 mm | 32 mm | 32 mm | 32 mm |
| BB Height | O | 344 mm | 344 mm | 344 mm | 344 mm |
| Fork Offset | U | 44 mm | 44 mm | 44 mm | 44 mm |
| Eye to Eye Length | P | 210 mm | 210 mm | 210 mm | 210 mm |
| Estimated seat height | 700 mm | 750 mm | 800 mm | 850 mm |
GEOMETRY
“Golden Ratio Geometry” is the best overall geometry that we have ever designed. Why? Because the proportions between the front and rear triangles are most effective for the type of riding the Carbonjack is designed for. Our special balance distribution between the „Front Center” to „Chainstay” means better rider mass distribution, it doesn’t matter whether you are climbing or descending. The new Carbonjack geometry gives the rider confidence to progress.
| Recomended frame size | S | M | L | XL | |
| User Height (cm) | 162-171 | 169-179 | 177 – 189 | 187 -198 | |
| Recomended seatpost | S | M | L | XL | |
| Seat post drop (mm) | 195 | 215 | 245 | 275 | |
| Model: (mm) |
120-150 | 150-180 | 180-210 | 210-250 | |
| Oneup V2 (mm) | 120/150* | 150/180* | 180/210* | 210 | |
| Bike Yoke (mm) | 125 | 160 | 185 | 185 | |
| *if You use longer option, it may require reduce travel | |||||
GEOMETRY
“Golden Ratio Geometry” is the best overall geometry that we have ever designed. Why? Because the proportions between the front and rear triangles are most effective for the type of riding the Carbonjack is designed for. Our special balance distribution between the „Front Center” to „Chainstay” means better rider mass distribution, it doesn’t matter whether you are climbing or descending. The new Carbonjack geometry gives the rider confidence to progress.
SPECIFICATION
| Frame | Carbonjack 29″, FDS Suspension, 150 mm travel, Boost |
| Fork | Fox 36 Factory Grip2 160 mm / Öhlins RFX 36 160 mm |
| Rear Shock | Fox Float X2 Factory 210×55 mm / Öhlins TTX 22M |
| Wheels | DT Swiss E1700 30 |
| Deraileur | Shimano XT RD-M8100 SGS |
| Shifter | Shimano XT SL-M8100 |
| Casette | Shimano XT CS-M8100 10-51T 12s |
| Chain | Shimano XT CN-M8100 |
| Crankset/Chainring | Shimano XT FC-M8120 32T |
| Bottom Bracket | Shimano BB-MT500 |
| Brakes | Shimano XT BL-M8100/BR-M8120 4-pistons |
| Rotors | Shimano RT-MT800 203 mm |
| Seatpost | One Up V2 M-150mm, L-180mm, XL-210mm |
| Handlebar | Antidote 800mm |
| Stem | One Up 35mm |
| Tires | Maxxis Minion DHF 29×2,5WT EXO+/DHR II 2,4WT EXO+ |
| Saddle | WTB SL8 Cromoly |
| Headset | CaneCreek 40 ZS44/ZS56 |
| Grips | RaceFace Half Nelson |

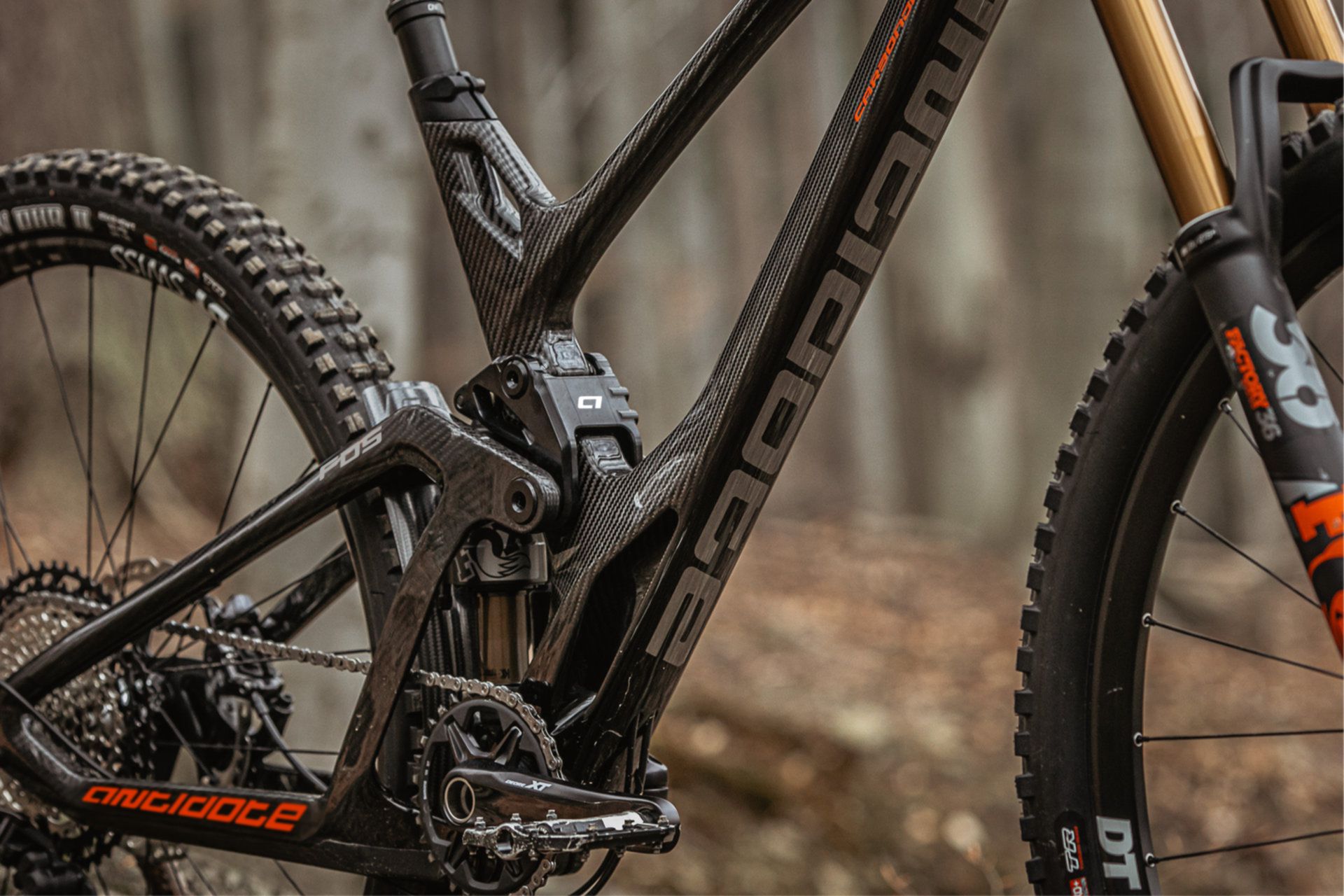

FDS SUSPENSION
- Pedalling efficiency with no feedback
- Superb small bump sensitivity
- Excelent traction during technical climbs
- Progression giving place to abuse
even on downhill tracks - Inline shock compression

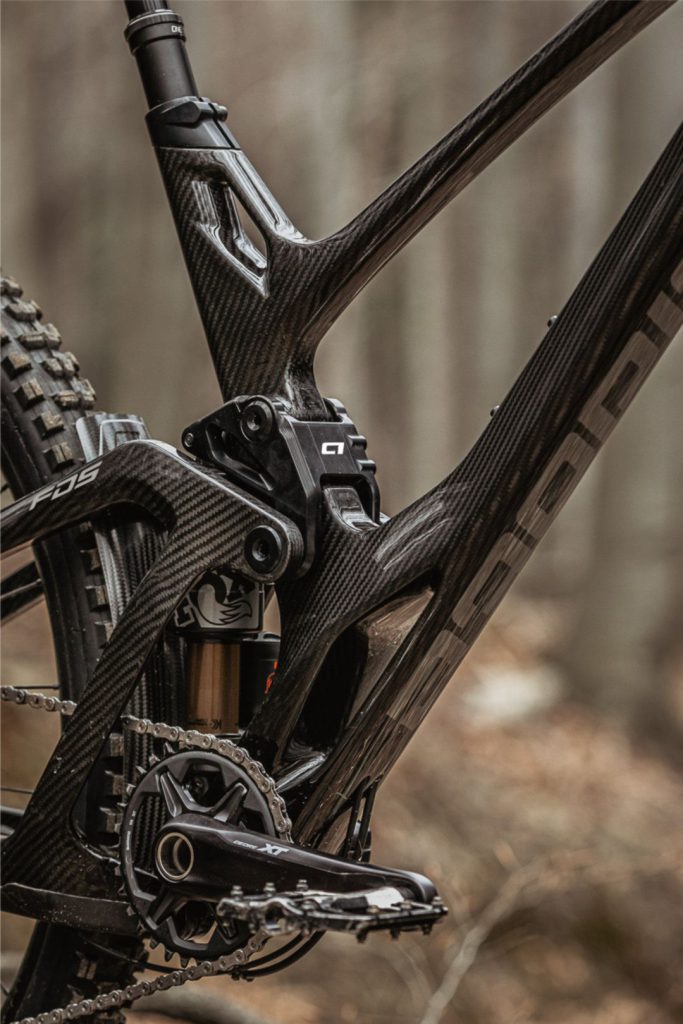

UNIQUE SHOCK MOUNT
- Floating shock design
- Easy acces to settings
LOW CENTER OF GRAVITY
- Better cornering
- More control on ground and in the air
DAMPER ASSEMBLY
Through 90 degrees damper rotation, we have
obtained seamless, easy access to adjustment.
Equipped with 150 mm travel, slack geometry and short rear carbonjack gives the rider perfect balance while blasting down the trails. An upright seat tube angle and pedal efficient suspension makes climbing easy, giving you even more energy for fun parts!
Our floating damping system is patented. No shock mounts in the front triangle or swingarm means better stress distribution. A simple and effective suspension design with unique shock access combined with lightweight and aggressive geometry will improve your riding skills dramatically, before you realize it!
