CARBONJACK 27,5 Enduro frameset
DESIGN HIGHLIGHTS
- Custom carbon layup
- Unique sideways shock access
- FDS damping platform
- Carbon \ Vectran composite monocoque front triangle
- Carbon \ Vectran swingarm
- DH derived geometry that maintains pedalling efficiency
- Water Bottle ready
- Handmade in Poland
- Lifetime warranty
TEST & REVIEW
3 499 €
FULL CARBON
ENDURO PACKAGE
- 160MM OF TRAVEL
- SLACK GEOMETRY
- SHORT REAR
SPECIFICATION
WHEELS: 650B/27,5”
TRAVEL: 160mm
REAR SHOCK: 200/57mm
SEATPOST SIZE: 30.9mm (min. deep in frame 200mm)
REAR HUB: 142x12mm
BB: BB92 or 73mm
HEADSET: Semi-integrated 1 1/8” – 1,5” (Frustum ZS – 44,00mm x 55,95mm)
MATERIAL: Monocoque Carbon & Vectran Composite
BOLTS: Custom Alloy
LINKAGES: 7075 Anodized CNC
WEIGHT: 2.6 KG (M size)
FIRST OWNER RECEIVES LIFE LONG WARANTY

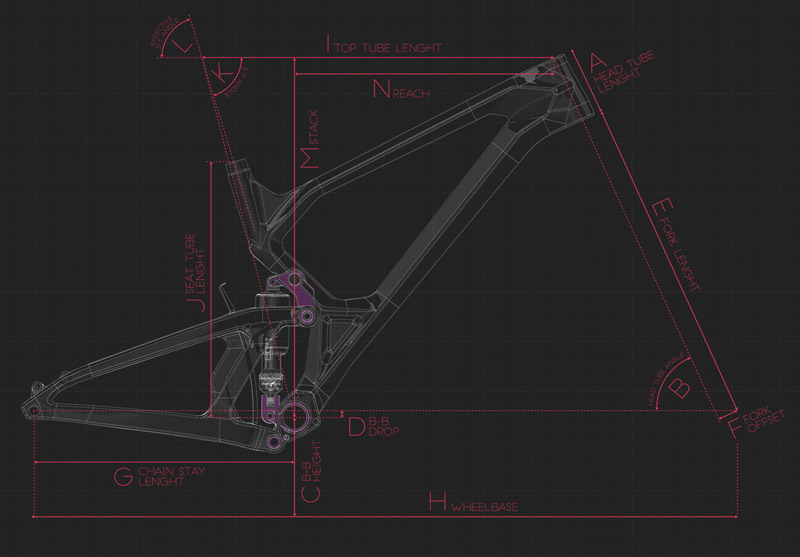

GEOMETRY
| M | L | ||
| A | Head tube length | 115 mm | 115 mm |
| B | Head tube angle | 65.5° | 65.5° |
| C | B-B height | 343 mm | 343 mm |
| D | B-B drop | 12 mm | 12 mm |
| E | Fork length | 555 mm | 555 mm |
| F | Fork offset | 46 mm | 46 mm |
| G | Chain stay length | 438 mm | 438 mm |
| H | Wheelbase | 1183 mm | 1213 mm |
| I | Top tube length | 585 mm | 615 mm |
| J | Seat tube length | 440 mm | 470 mm |
| K | Seat tube angle | 68° | 68° |
| L | Seat tube angle (effective) | 75° | 75° |
| M | Stack | 603 mm | 603 mm |
| N | Reach | 425 mm | 455 mm |
FDS
suspension characteristics
- Active under braking
- Pedal efficient with no feedback
- Low center of gravity
- Superb small bump sensitivity
Design
Highlights
- Custom carbon layup
- Unique sideways shock access
- FDS damping platform
- Carbon \ Vectran composite monocoque front triangle
- Carbon \ Vectran swingarm
- DH derived geometry that maintains pedalling efficiency
- Water Bottle ready
- Handmade in Poland
