DARKMATTER 27,5 Downhill frameset



NOSTER KINETICS DESIGN

It allows us to create a bike with a wheel path similar to a high pivot solution which maintains speed in the rough terrain, but devoid of it’s disadvantages, namely high pedal kickback and lockout under braking.

GEOMETRY CONTROL UNDER BRAKING

  • Braking forces steer the suspension
    towards sag point
  • Better geometry and rider position, especially
    in the steep, without negatively affecting traction



REARWARD
AXLE PATH

  • Less hanging up
    on square-edged obstacles
  • More speed in the rough terrain



CEVLAR / VECTRAN REINFORCEMENT

LOW CENTER OF GRAVITY



KEVLAR / VECTRAN
REINFORCEMENT

LOW CENTER
OF GRAVITY

IDLER PULLEY

  • Control pedal kick-back and chain tension
  • Smoother ride, less leg fatigue
  • Less noise, more confidence

SEMI-FLOATING REAR BRAKE

  • Prevents suspension lockout during braking
  • More wheel tracktion
  • Smoother ride



SPECIFICATION

WHEELS: 650B / 27,5”
TRAVEL: 200 mm
REAR SHOCK: 241/76mm
SEATPOST SIZE: 30.9mm
REAR HUB: 142x12mm
BB: BB107
HEADSET: Semi-integrated 1 1/8” – 1,5”  (Frustum ZS – 44,00mm x 55,95mm)
MATERIAL: Monocoque Carbon & Vectran Composite
BOLTS: Custom Alloy
LINKAGES: 7075 T6 Anodized CNC
WEIGHT: 2.9 KG (M size)

FIRST OWNER RECEIVES LIFE LONG WARRANTY

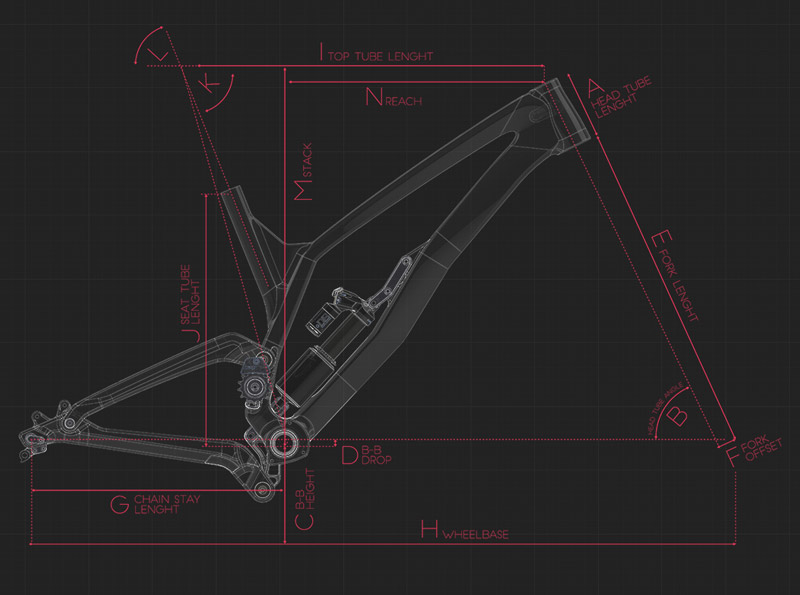

GEOMETRY

M L
A Head tube length 110 mm 120 mm
B Head tube angle 63.5° 63.5°
C B-B height 347 mm 347 mm
D B-B drop 8 mm 8 mm
E Fork length 585 mm 585 mm
F Fork offset 48 mm 48 mm
G Chain stay length 435 mm 435 mm
H Wheelbase 1205 mm 1237 mm
I Top tube length 580 mm 610 mm
J Seat tube length 420 mm 450 mm
K Seat tube angle 68° 68°
L Seat tube angle (effective) 75° 75°
M Stack 608 mm 617 mm
N Reach 417 mm 445 mm
